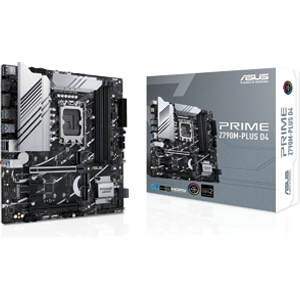

Asus Prime Z790M-PLUS

Asus Prime Z790M-PLUS Motherboard

• CPU:
  • Socket: LGA1700
  • Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Technology: Intel Turbo Boost Technology 2.0
• Chipset:
  • Intel Z790
• Form Factor:
  • Micro ATX
• Memory:
  • Slots: 4 x DIMM
  • Memory Support: DDR5
  • Max Capacity: 192GB
  • Architecture: Dual-channel
  • Supports Intel Extreme Memory Profile (XMP)
  • Memory Speed: DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
• Graphics:
  • Ports: 1 x HDMI 2.1, 1x DisplayPort 1.4
  • Resolution: HDMI (4K@60Hz)
  • Resolution: DisplayPort (4K@60Hz)
• Expansion Slots:
  • Intel 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot
  • Intel Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots
• Storage:
  • 4 x SATA 6Gb/s ports
  • 3 x M.2 slot (Key M)
• Ethernet:
  • 1 x Intel 1Gb Ethernet
  • Asus LANGuard
• USB (Rear):
  • Total 8 ports
    • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
    • 1 x USB 3.2 Gen 2 port (1 x Type-A)
    • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
• USB (Internal):
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Internal I/O Ports:
  • Fan and cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
